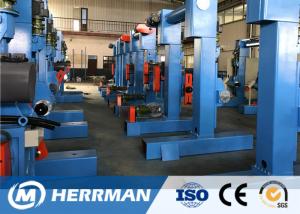

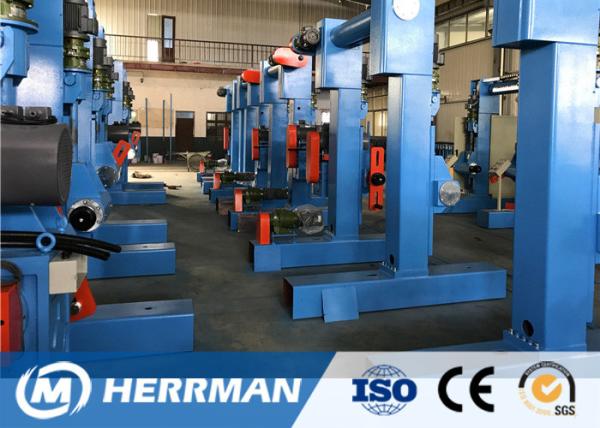

High Speed Copper And Aluminum Wire Cable Rewinding Machine With Taping
Equipment use:
The Cable Rewinding machine is mainly use for rewinding the flat power cable.
Main Technical Data
Wire diameter
circular cable 2.0～15.0 mm
flat cable 4.0～21.0 x 10.0mm
Pay-off bobbin size: PN800~PN1600
Take Up bobbin Size:PND500~PND750
Structural features :
1．Gantry rail walk type. Placed on or under the tubular structure
2. The frame with rectangular tube welded together, the "A" type structure, has the stable structure. The characteristics of the bearing capacity is strong, neat appearance. Beautiful
3. The elevator guide rail for high strength and linear rolling guide (linear guide rail pair)
4. Line transmission adopts hard gear box, transmission torque, low noise
5. Take-up main motor
A. Take-up main motor adopts dc speed regulating motor, controller for continental series products
B. Take-up main motor adopts dc speed regulating motor, controller for continental series products
6．Row line motor adopts frequency conversion motor, controller of Siemens or Danfoss products, wiring, automatic tracking and linear velocity, strings of pitch and take-up tension can be set on the touch screen (Siemens) of operation PLC programmable controller with various host from spreading.
Main technical parameters
| Model specification | ALSP．ALF1250/2500 | ALSP．ALF2000/3150 | ALSP．ALF2500/4500 | ALSP．ALF3150/5000 |
| Coil specification shall apply | PN1250-PN2500 | PN2000-PN3150 | PN2500-PN4500 | PN3150-PN5000 |
| Applicable to cable diameter(mm) | ≤120 | ≤160 | ≤160 | ≤180 |
| Coil diameter(mm) | Φ1250～Φ2500 | Φ2000～Φ4200 | Φ2500～Φ4500 | Φ3150～Φ5000 |
| Apply coil width(mm) | 1180～1900 | 1500～2300 | 1900～2500 | 2300～3000 |
| Closed linear velocity (mm/min) | ≤80 | ≤50 | ≤35 | ≤30 |
| Ribbon cable precision (%) | 1～2% | 1～2% | 1～2% | 1～2% |
| Bearing capacity(t) | 15 | 18 | 35 | 40 |
Machine Drawing
